HT-20U Mini Excavator

उत्पत्ति के प्लेस चीन
ब्रांड नाम Hightop
प्रमाणन CE,EPA,ISO,TUV
मॉडल संख्या HT20U
उत्पाद का विवरण
नमूना:
HT20U
कामकाजी वजन:
1650 किग्रा
कुल लंबाई/शिपिंग लंबाई ए:
3582
पहाड़ी पर चढ़ने की क्षमता:
30°
भुगतान और शिपिंग शर्तें
प्रसव के समय
5-8 कार्य दिवस
भुगतान शर्तें
एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता
प्रति माह 100 सेट
उत्पाद का वर्णन

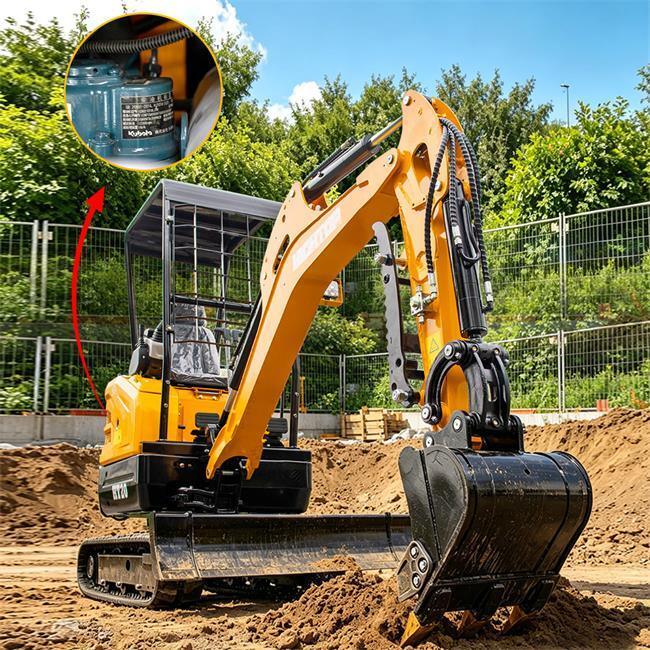

HT-20U Mini Excavator

The HT-20U is a highly reliable 2-ton mini excavator designed for versatility and efficiency in small-scale construction projects. Featuring a zero-tail-swing structure, it performs excellently in confined spaces such as urban construction, garden landscaping, farm maintenance, and municipal engineering. Powered by a stable engine and matched with a precise hydraulic system, the machine delivers strong digging force, smooth operation, and low fuel consumption. With a retractable undercarriage, ergonomic controls, and wide compatibility with various attachments, it ensures easy operation, high flexibility, and multifunctional application. Sturdy in structure, durable in use, and cost-effective in performance, the HT-20U mini excavator is an ideal choice for construction contractors, rental companies, and agricultural users.

Technical Specifications
Parameter Value
Working weight (kg) 1650
Bucket capacity (m³) 0.04
Rated power 11.8/2300
Hill-climbing ability 30°
Bucket digging force (kN) 16
Digging force at the boom tip (kN) 9.5
Soil pressure kPa 30
Rotational speed (r/min) 9.5
Overall Dimensions (mm)
Dimension Value
Overall length/Shipping length A 3582
Total width B 1011/1320
Upper width D 998
Overall height (roof/cab roof) C 2498
Standard track width F 230
Minimum ground clearance H 150
Turning radius at the rear I 662
Front and rear track width J 1191
Track length K 1560
Height of the dozer blade above the ground R 250
Bucket digging depth T 235
Working Range (mm)
Parameter Value
Maximum digging height a 3276
Maximum unloading height b 2415
Maximum digging depth c 2042
Maximum digging radius d 3780
Minimum turning radius e 2080
Maximum height f at the minimum turning radius 2580
Key Components
Component Specification
Engine Kubota
Valve assembly JX10-01
Gear pump TFA10VO28LADS-53R-VSC12N00-JNJT-01
Travel motor FTM01A-012006PV037HL01-03
Product Images
HT-20U Mini Excavator 0 HT-20U Mini Excavator 1 HT-20U Mini Excavator 2 HT-20U Mini Excavator 3 HT-20U Mini Excavator 4 HT-20U Mini Excavator 5 HT-20U Mini Excavator 6 HT-20U Mini Excavator 7 HT-20U Mini Excavator 8 HT-20U Mini Excavator 9 HT-20U Mini Excavator 10 HT-20U Mini Excavator 11 HT-20U Mini Excavator 12 HT-20U Mini Excavator 13
